Master TS Line Marking

Item No.: 690103-342140 690103-342340 690103-342640 690103-342740 690103-342741 690103-342742

Line Marking for sports floors

Very strong and resistant
For professional marking of sports floors
Designed for use with Master TS Sports Lacquer

Colours

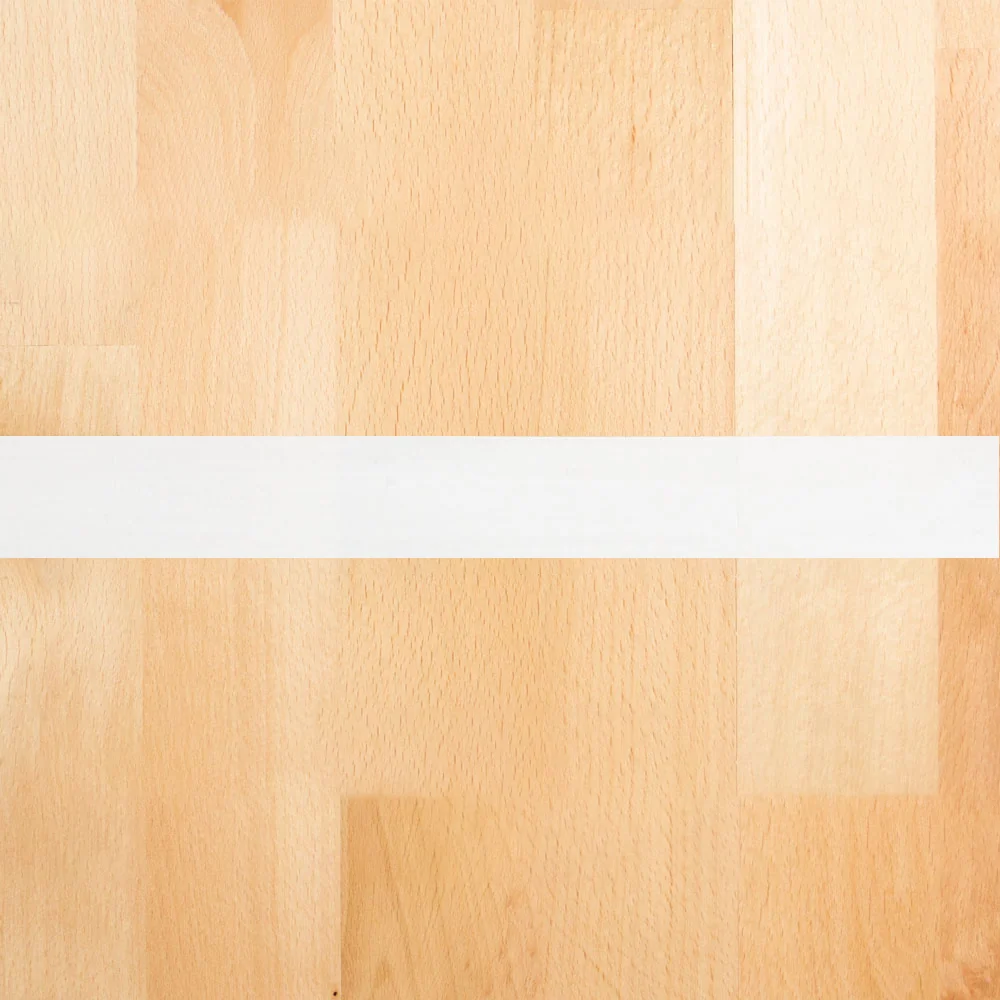

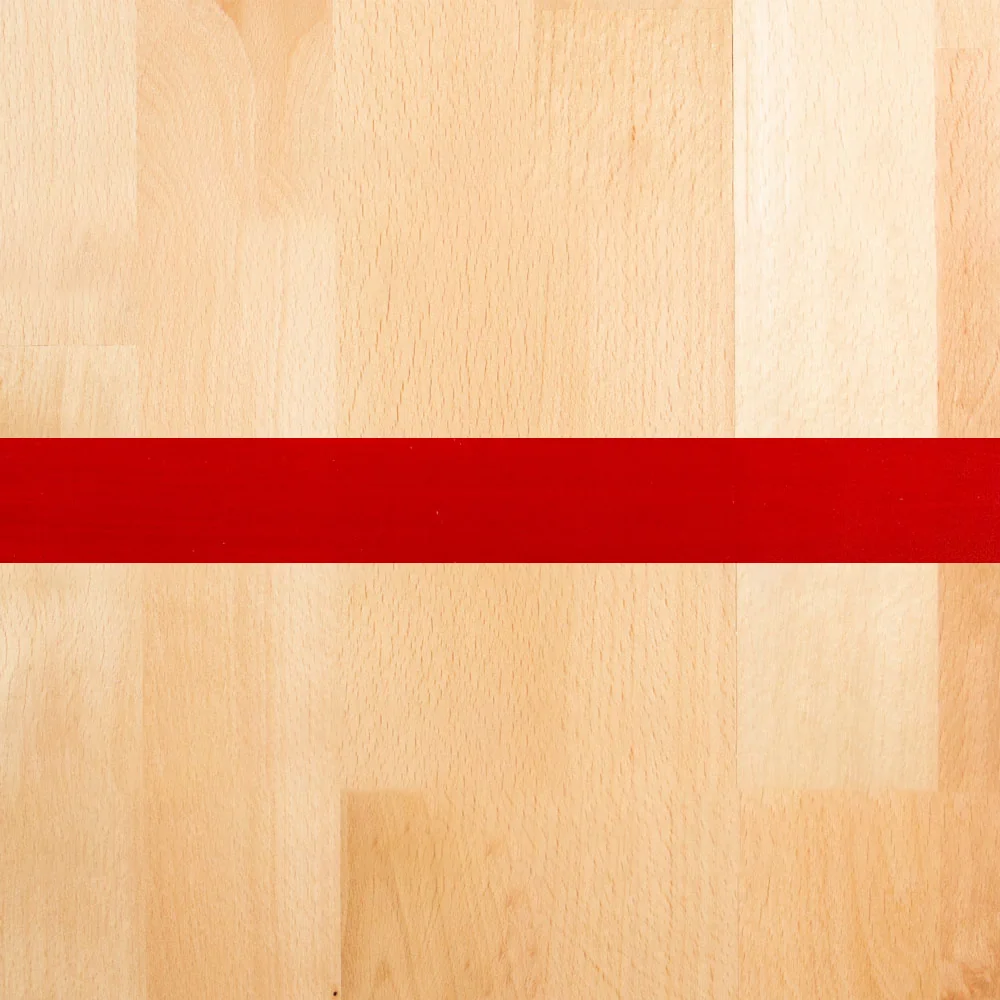

*The wood sample is shown on beech

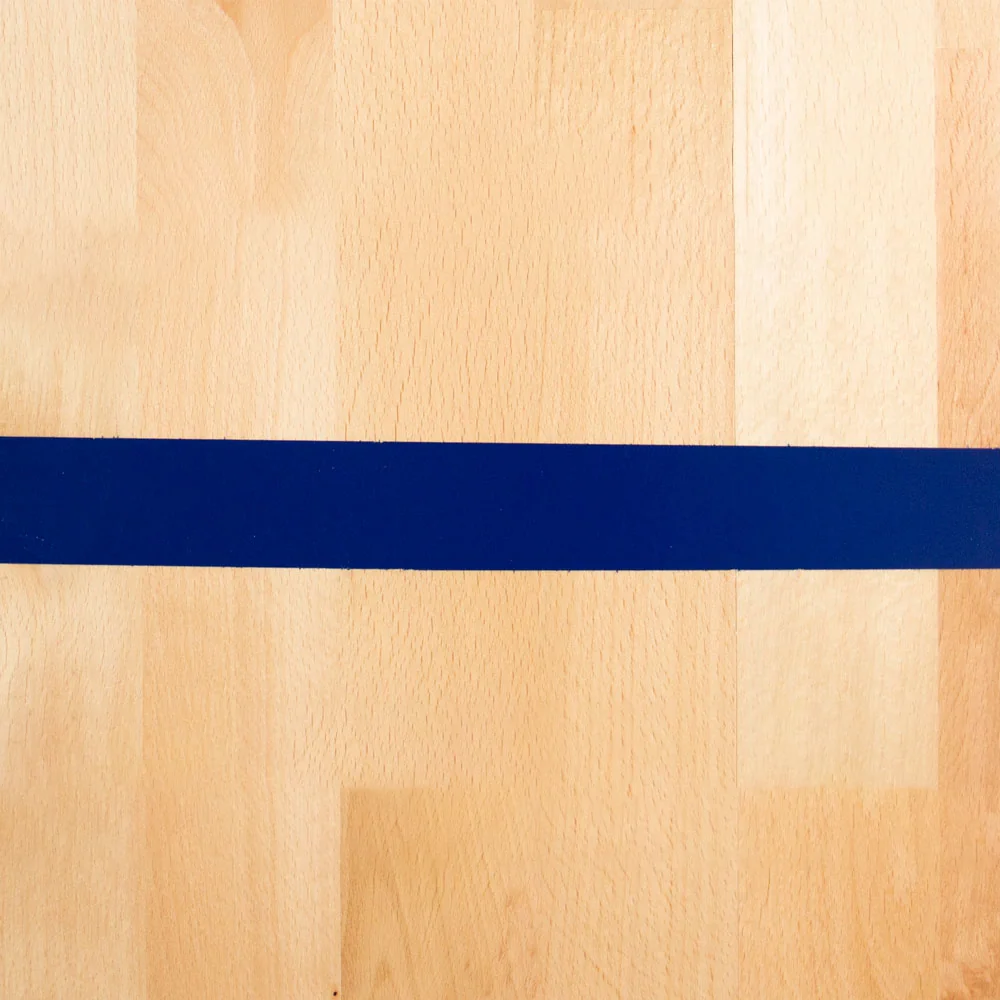

Blue

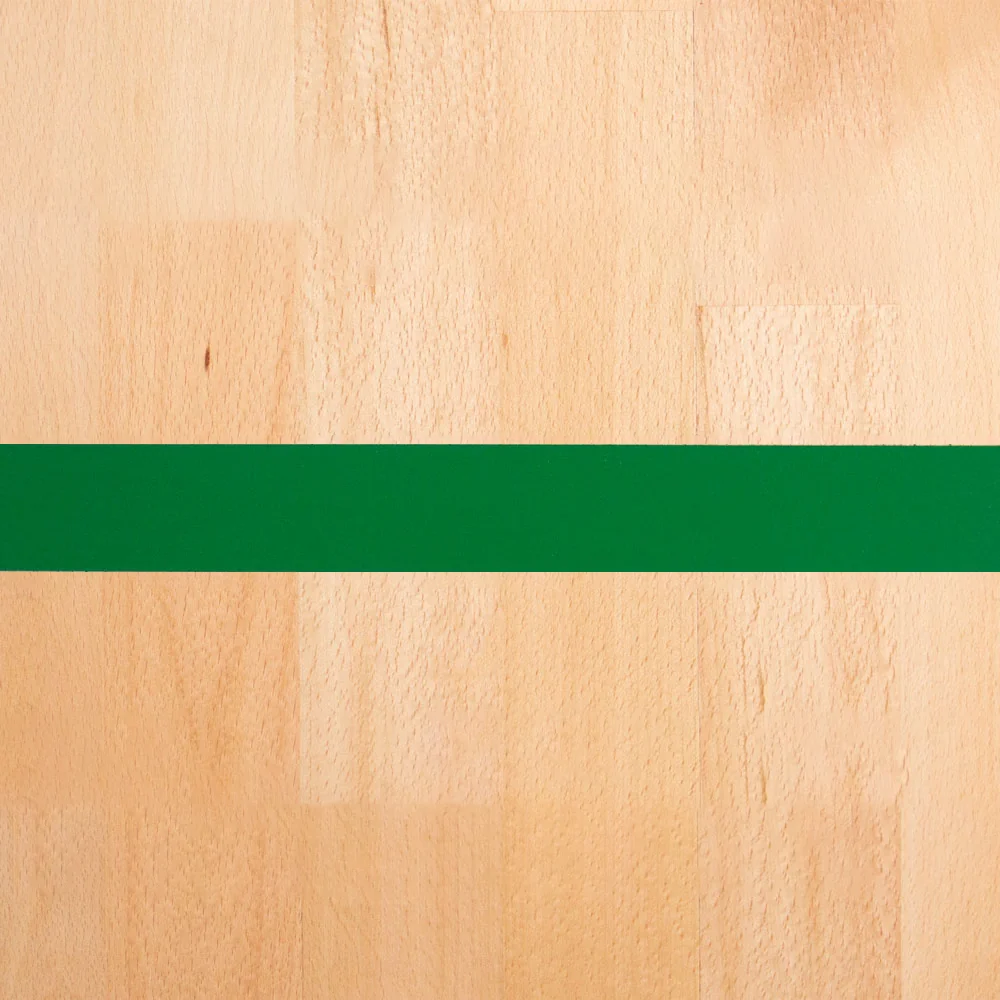

Green

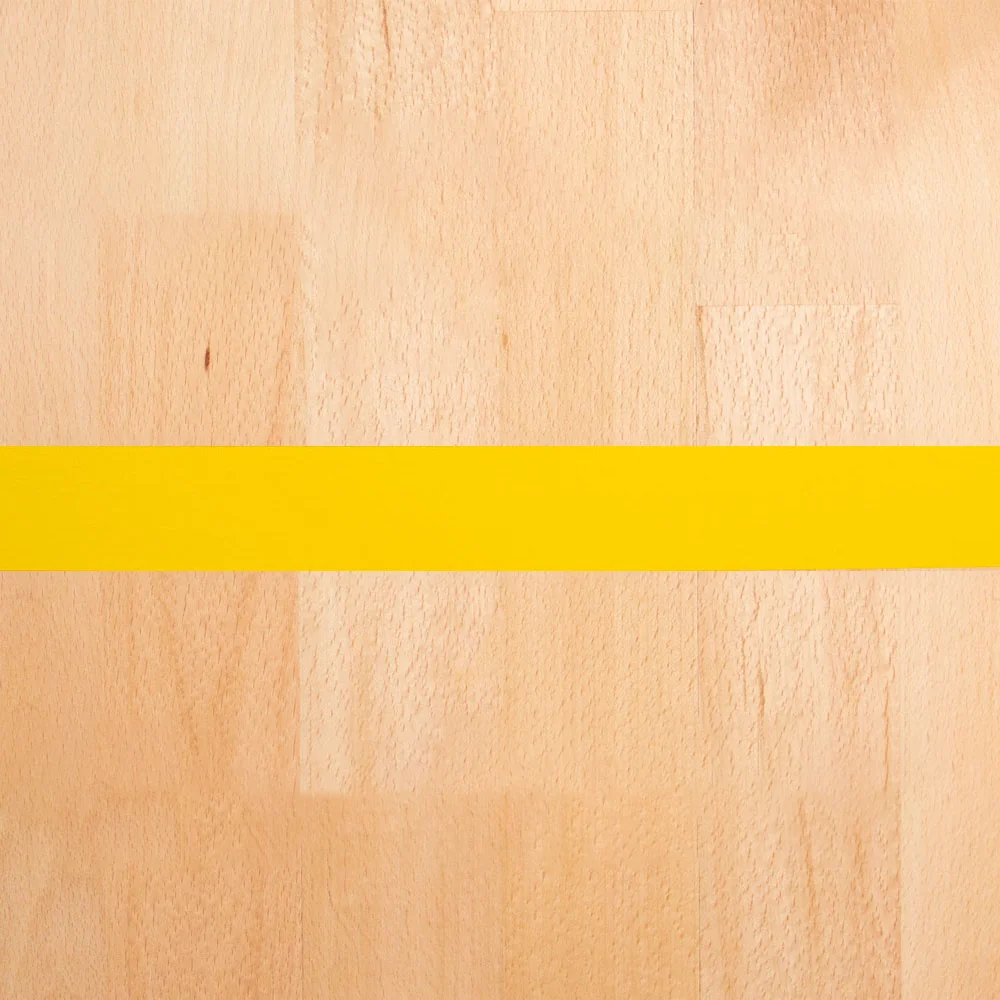

Yellow

White

Red

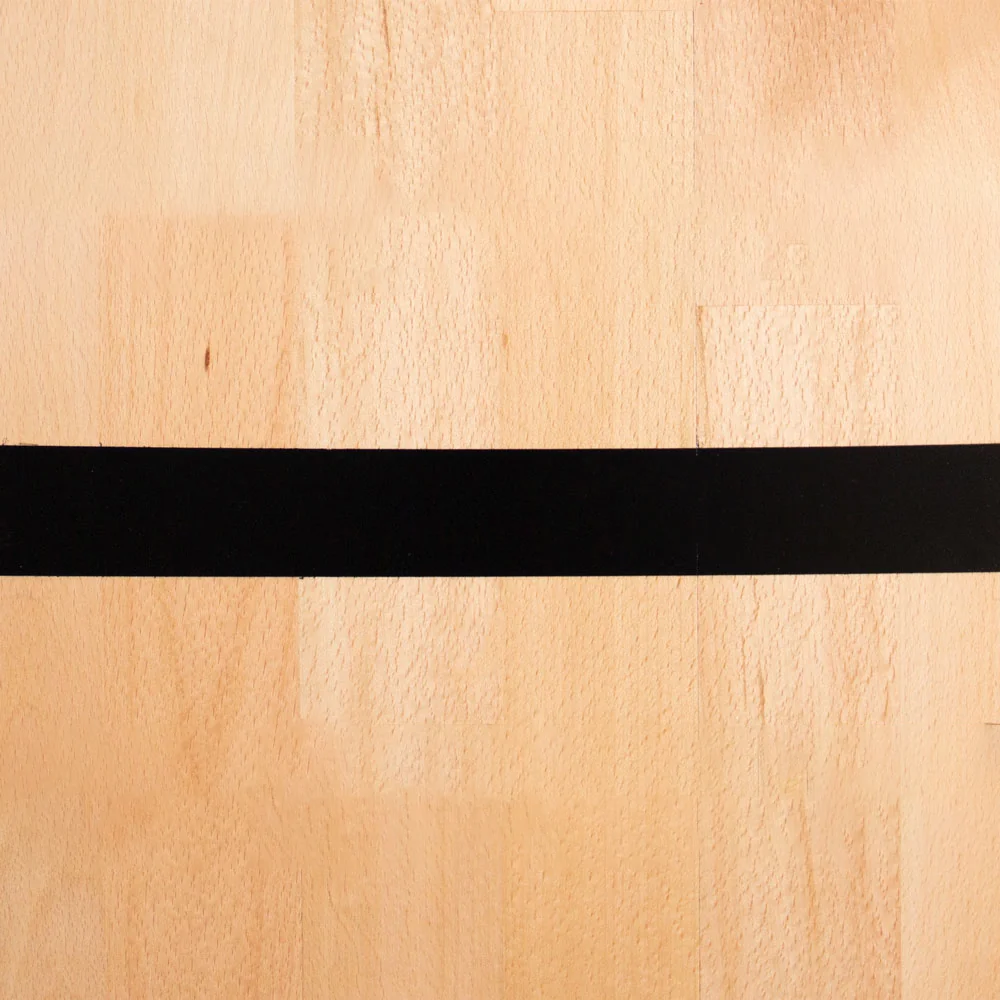

Black

Packing

Certifications

Product Details

Master TS Line Marking is a lacquer-based paint developed for marking lines in sports and recreational facilities, such as sports halls and multi-purpose arenas. The line marking paint is water-based and specifically designed for lacquered wooden floors, complying with the European sports standard EN 14904. It is available in six standard RAL colours.

Safety data sheet available on request.
Warning! Hazardous respirable droplets may be formed when sprayed. Do not breathe spray or mist.
Contains : 1,2-benzisothiazol-3(2H)-one. May produce an allergic reaction.
The following applies only for colours that contains more than 1 % white pigment.

VOC:

95 g/l, maximum VOC content (A/e (WB)): 130 g/l.

Density:

1.00-1.10 g/ml.

Coverage:

pH 7-8

Shelf life:

1 year

Application Temperature:

+15-25°C and approx. 50% air humidity.

Coverage:

6-10 m²/L

Colour:

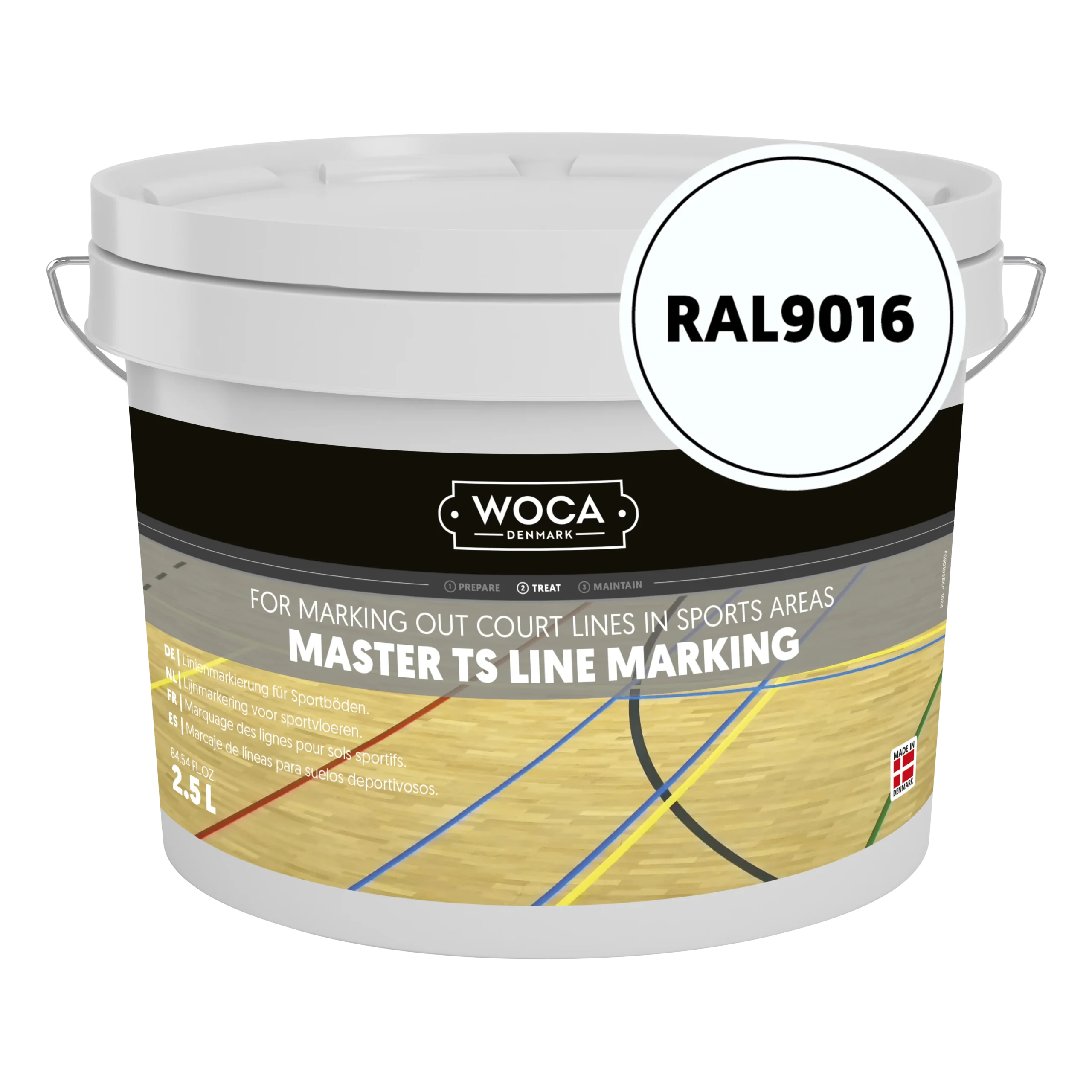

White

Packaging:

2.5 L

VOC:

95 g/l, maximum VOC content (A/e (WB)): 130 g/l.

Density:

1.00-1.10 g/ml.

Coverage:

pH 7-8

Shelf life:

1 year

Application Temperature:

+15-25°C and approx. 50% air humidity.

Coverage:

6-10 m²/L

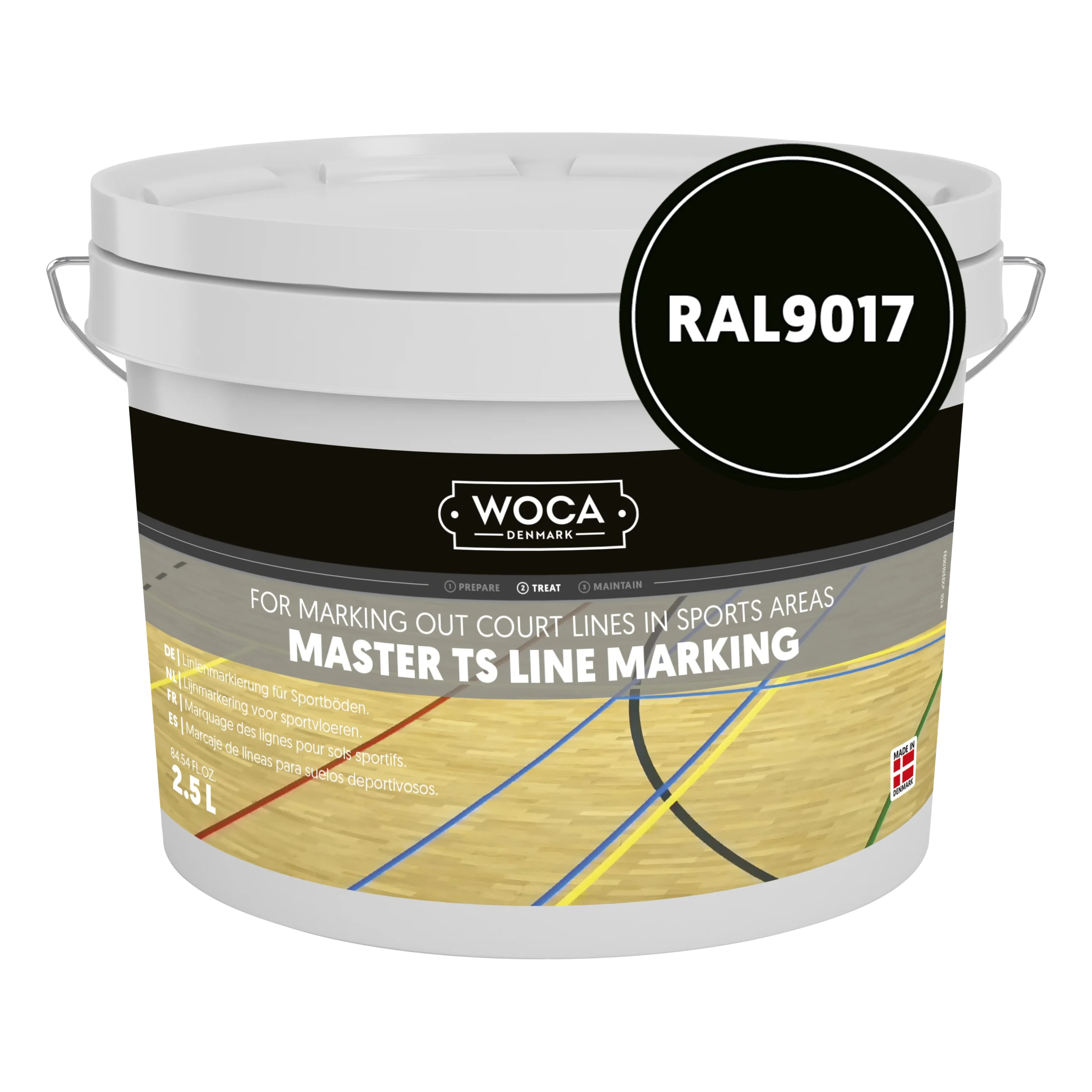

Colour:

Black

Packaging:

2.5 L

VOC:

95 g/l, maximum VOC content (A/e (WB)): 130 g/l.

Density:

1.00-1.10 g/ml.

Coverage:

pH 7-8

Shelf life:

1 year

Application Temperature:

+15-25°C and approx. 50% air humidity.

Coverage:

6-10 m²/L

Colour:

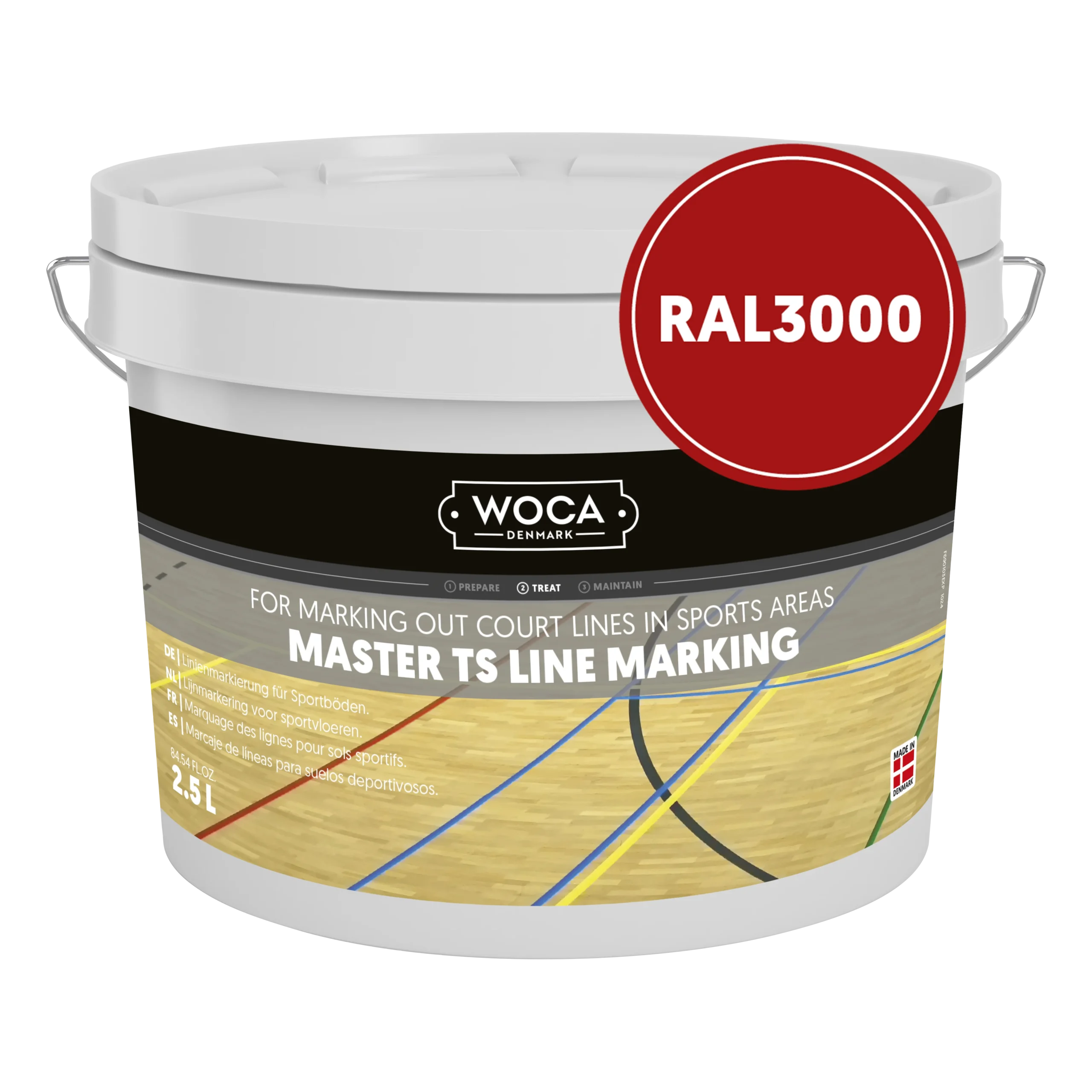

Red

Packaging:

2.5 L

VOC:

95 g/l, maximum VOC content (A/e (WB)): 130 g/l.

Density:

1.00-1.10 g/ml.

Coverage:

pH 7-8

Shelf life:

1 year

Application Temperature:

+15-25°C and approx. 50% air humidity.

Coverage:

6-10 m²/L

Colour:

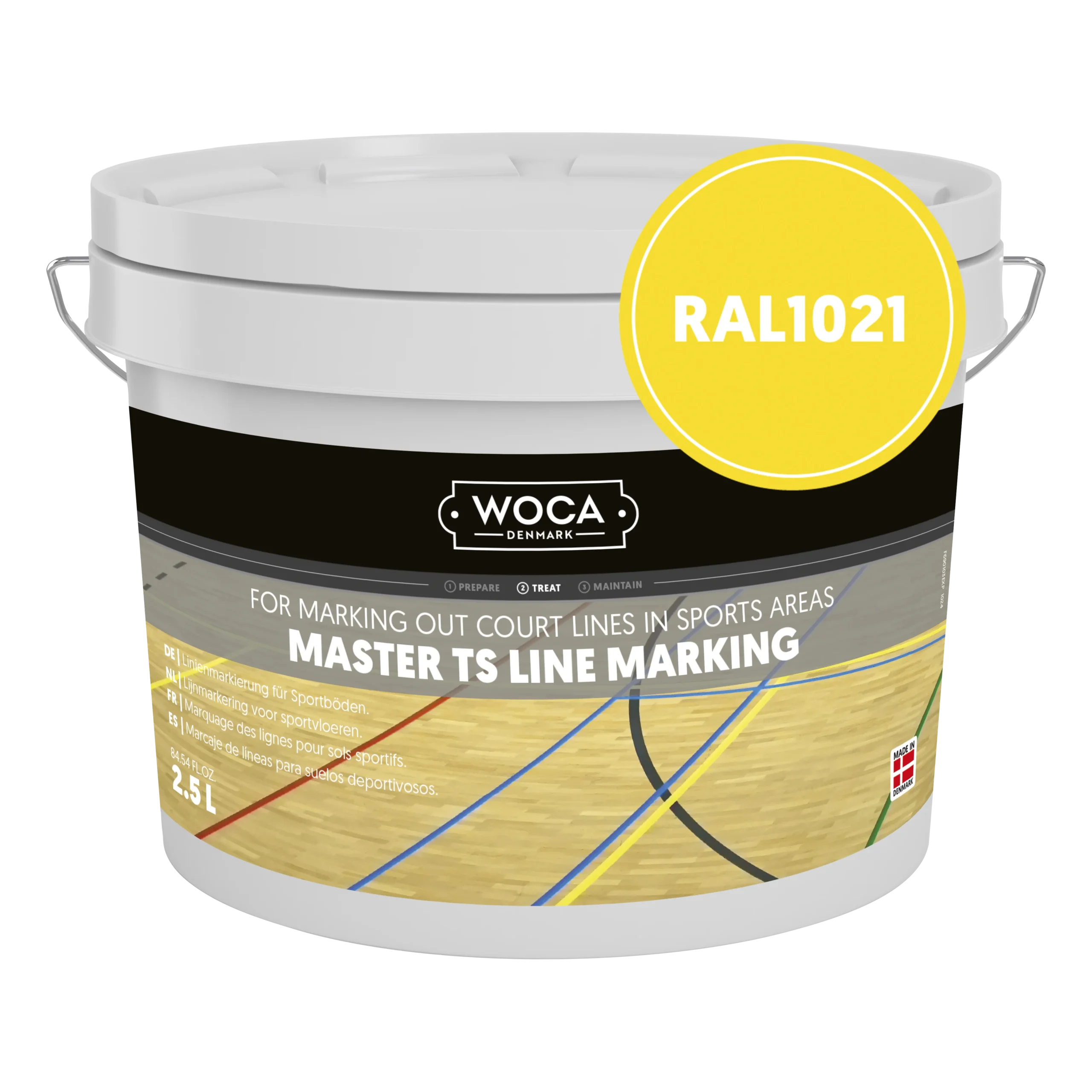

Yellow

Packaging:

2.5 L

VOC:

95 g/l, maximum VOC content (A/e (WB)): 130 g/l.

Density:

1.00-1.10 g/ml.

Coverage:

pH 7-8

Shelf life:

1 year

Application Temperature:

+15-25°C and approx. 50% air humidity.

Coverage:

6-10 m²/L

Colour:

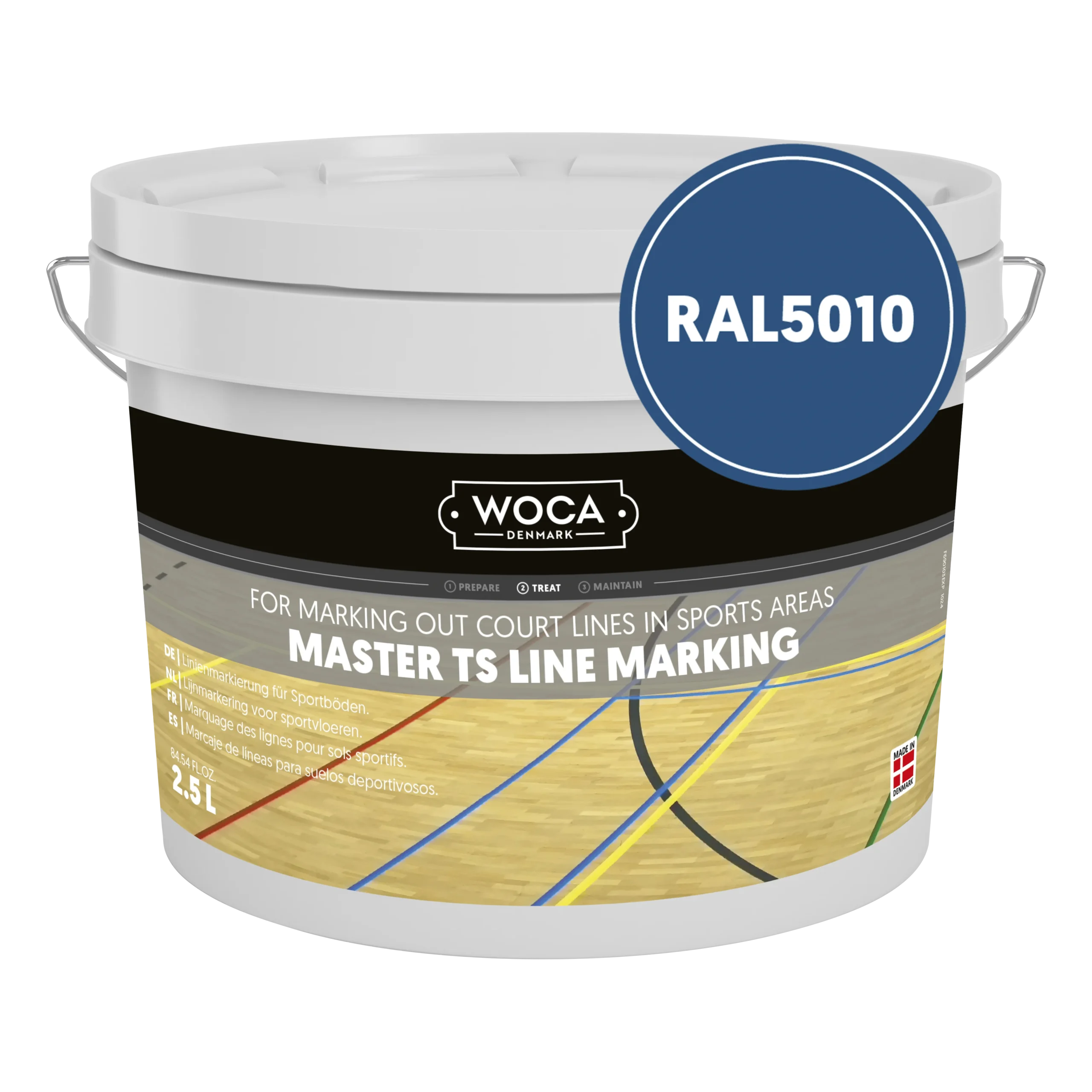

Blue

Packaging:

2.5 L

VOC:

95 g/l, maximum VOC content (A/e (WB)): 130 g/l.

Density:

1.00-1.10 g/ml.

Coverage:

pH 7-8

Shelf life:

1 year

Application Temperature:

+15-25°C and approx. 50% air humidity.

Coverage:

6-10 m²/L

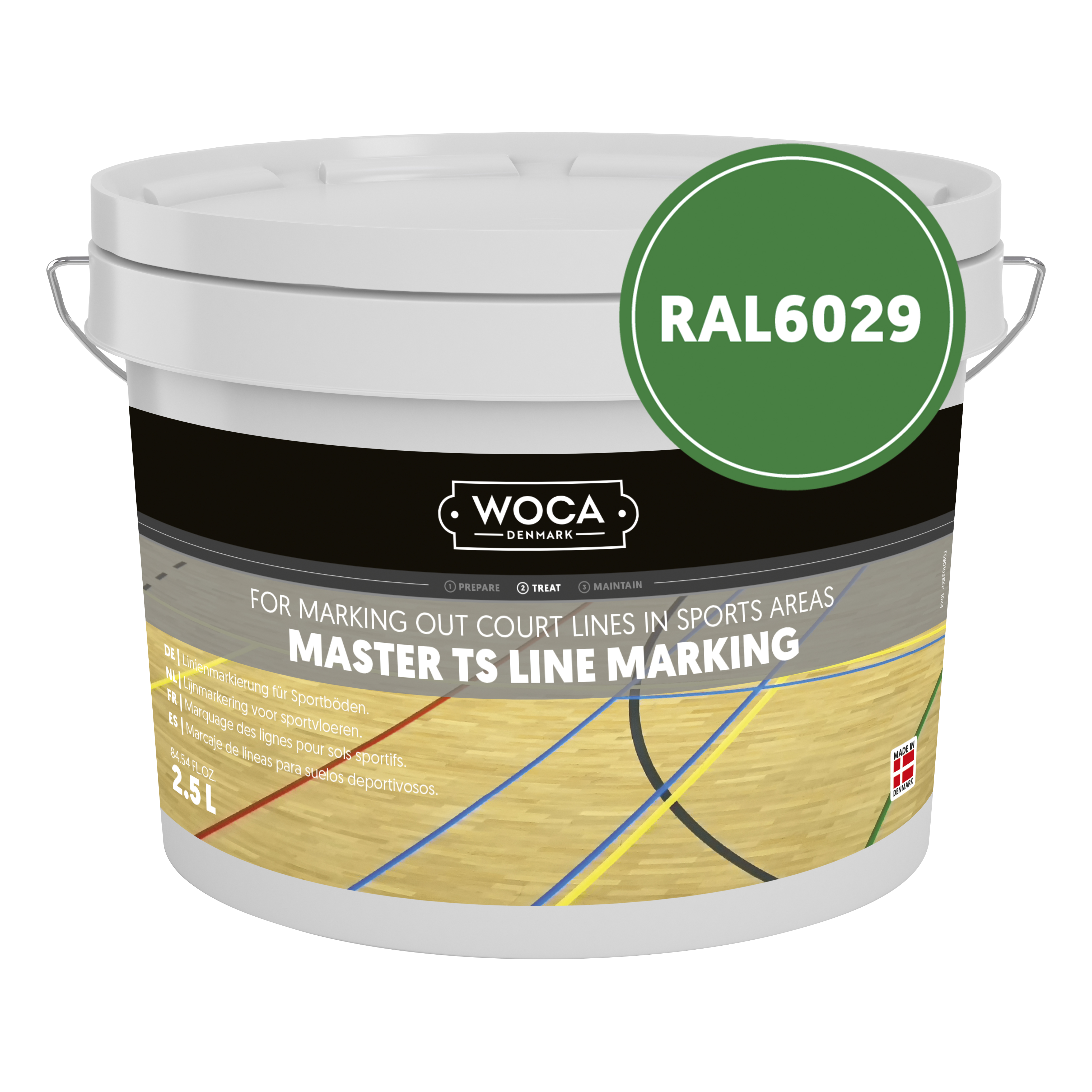

Colour:

Green

Packaging:

2.5 L

The pre-treated floor is lightly sanded with grit 120-180 and thoroughly vacuumed

Mask off all lines and areas to be painted with tape, ensuring the tape adheres tightly to the floor to create a sharp edge without bleeding. We recommend TESA 4440.

To avoid color differences, mix different batch numbers before application.

The Master TS Line Marking is applied with a small paint roller or brush. (White and yellow line marking may require two coats to achieve full color coverage)

After 2-3 hours of drying time (touch dry), apply one coat of Master TS 2K Lacquer to the entire floor to protect the line marking and achieve consistent friction on the sports floor.

For previously lacquered/new factory lacquered floors, it is always recommended to perform an adhesion test on a small area before starting the floor marking. The test area should be sanded with grit 120-180, and Master TS Line Marking should be applied to the area twice with a 4-hour interval. Allow the line marking to dry for 24 hours, then check the adhesion by gently scraping the line. If the adhesion is good, follow the instructions.
